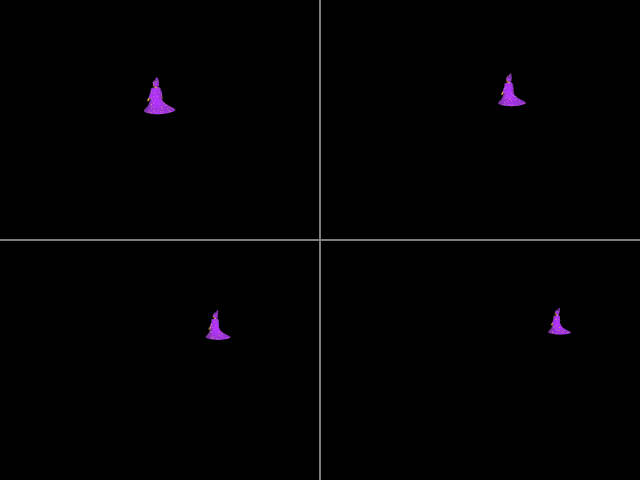

 |  | | Coordinate X in points (For modes 2D, 3D, Console) |   Show exampleHide example | | Gets or sets value of property X in the points. | | Set Baltie visible and in the cycle without end changes Blatie's coordinate X to the rest of division number of cycle repeats by 5. | | |
|
|

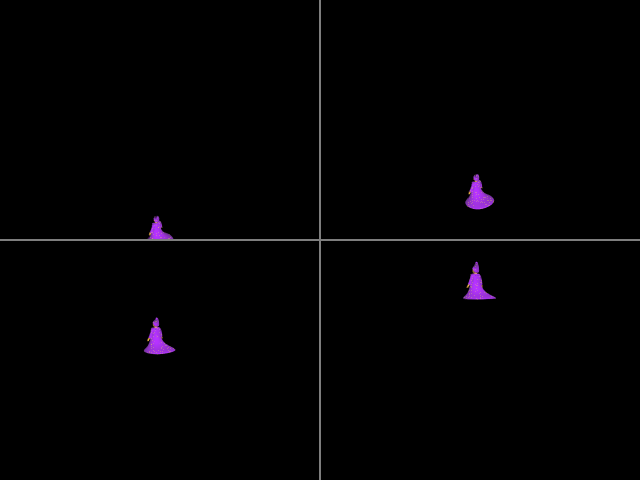

|  | | Coordinate Y in points (For modes 2D, 3D, Console) | Show exampleHide example | | Gets or sets value of property Y in the points. | | Set Baltie visible and in the cycle without end changes Blatie's coordinate Y to the rest of division number of cycle repeats by 5 minus 3. | | |
|
|
|  | | Point (For modes 2D, 3D, Console) | | | Define a point of pixel coordiante X and Y | |
|
|  | | Point 3D (For mode ) | | | Defines point in 3D space from three given coordinates | |
|
|  | | Is point in rectangle? (For modes 2D, 3D, Console) | | | Returns true, if given poin is in rectanle area | |
|
|  | | Rectangle (For modes 2D, 3D, Console) | | | Defines a new rectangle area | |
|
|  | | Define a box space (For mode 3D) | | | Defines a box space | |
|
|  | | Is vector in box? (For mode 3D) | | | Returns true if point is in box | |
|

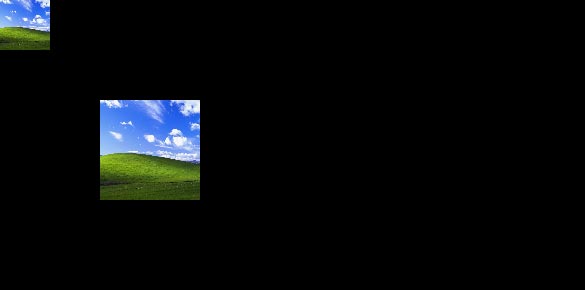

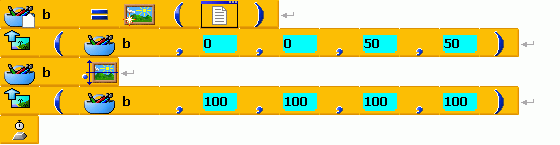

|  | | Load image (For modes 2D, 3D, Console) | Show exampleHide example | | Returns the Bitmap object, created from the given image file. | | Two times draws picture which is chosen by user on chosen coordinates. | | |
|
|
|  | | Load Bank (For mode 2D) | | | Reads Baltie's bank from file. Bank consists of tiles. | |
|

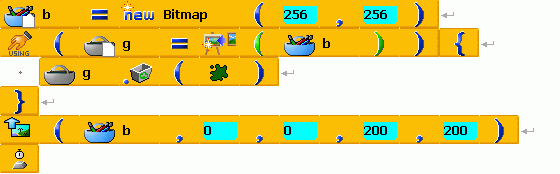

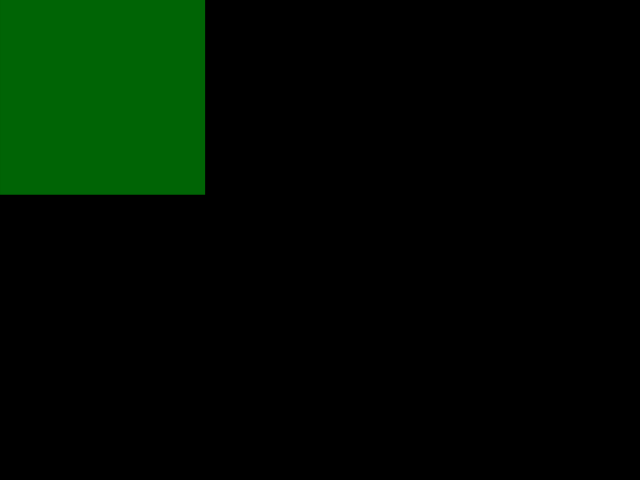

|  | | Create graphics from image or bitmap (For modes 2D, 3D, Console) | Show exampleHide example | | Creates Graphics object from given bitmap. | | Draws dark green bitmap on chosen coordinates. | | |
|
|

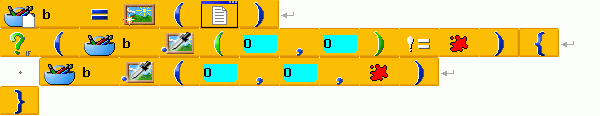

|  | | Bitmap set pixel (For modes 2D, 3D, Console) | Show exampleHide example | | Gets or sets color of the bitmap pixel at given coordinates. | | You choose a bitmap nad if the pixel in the right corner isn't red, sets the color of the pixel on red. | | |
|
|

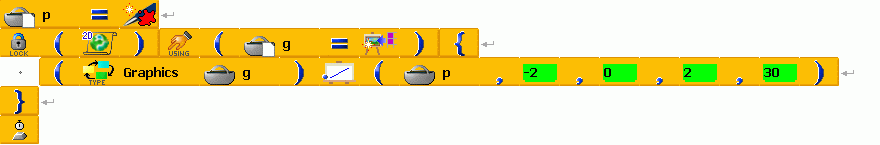

|  | | Solid pen (For modes 2D, 3D, Console) | Show exampleHide example | | Creates solid pen using the given color. | | Creates new red colored pen and draws line with this pen. | | |
|
|

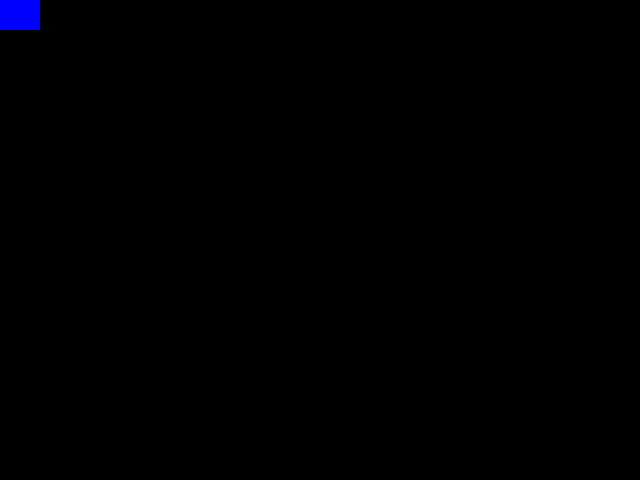

|  | | Solid brush (For modes 2D, 3D, Console) | Show exampleHide example | | Creates single color brush of the given color. | | Creates new solid brush with blue color and draws rectangle with it. | | |
|
|

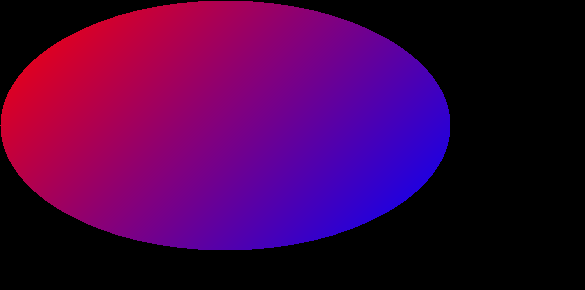

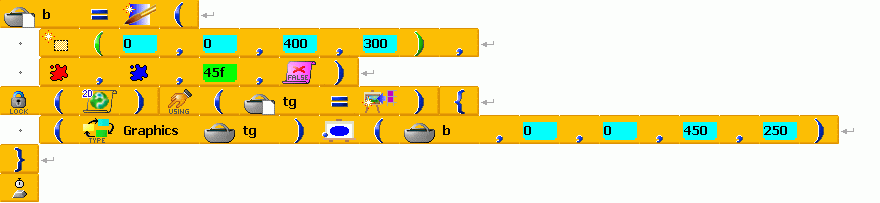

|  | | Linear gradient brush (For modes 2D, 3D, Console) | Show exampleHide example | | Creates brush using the linear color transition. | | Creates new linear gradient brush and sets it changeover from red to blue. Then draws filled ellipse with this brush on graphics on chosen coordinates. | | |
|
|

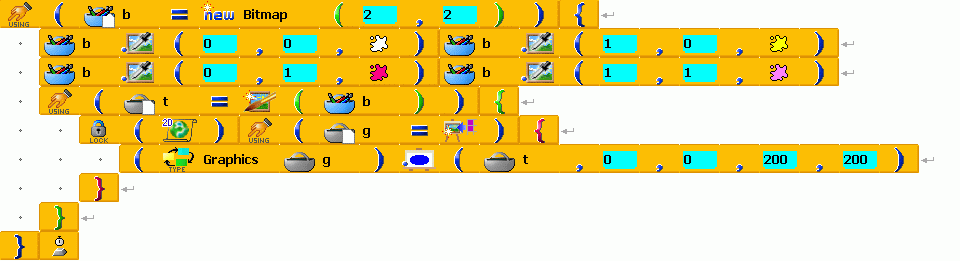

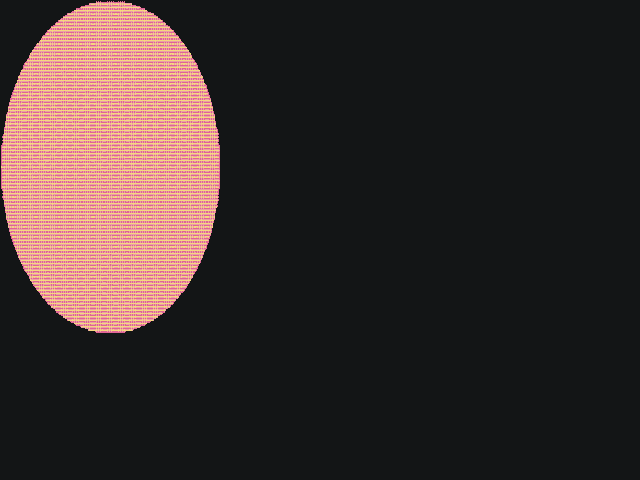

|  | | Texture brush (For modes 2D, 3D, Console) | Show exampleHide example | | Creates according to the given parameters brush that will paint texture. | |
|

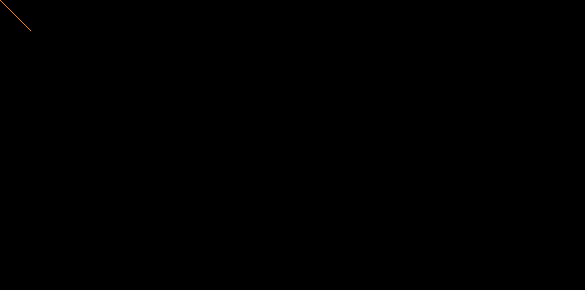

|  | | Graphics draw line (For modes 2D, 3D, Console) | Show exampleHide example | | Draws line to the graphics according to the given parameters. | | Draws orange line on graphics on chosen coordinates. | | |
|
|

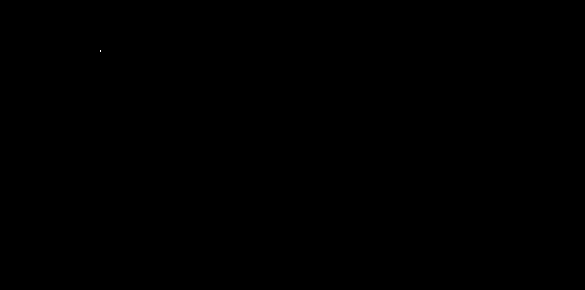

|  | | Graphics draw arc (For modes 2D, 3D, Console) | Show exampleHide example | | Draws arc to the graphics according to the given parameters. | | Draws arc on graphics with white pen according to chosen parametres. | | |
|
|

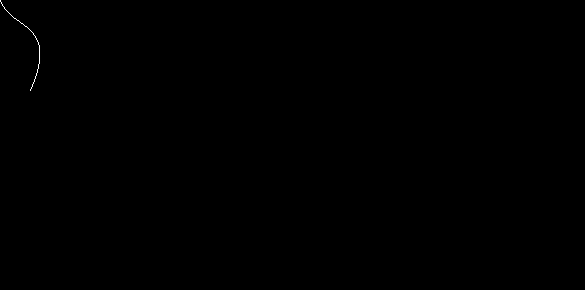

|  | | Graphics draw bezier (For modes 2D, 3D, Console) | Show exampleHide example | | Draws bezier curve to the graphics according to the given parameters. | | Draws Bézier curve on graphics with white pen according to chosen parametres. | | |
|
|

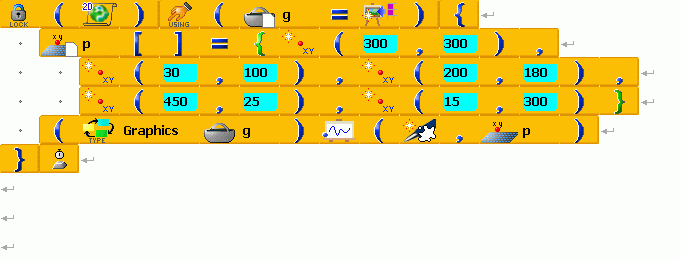

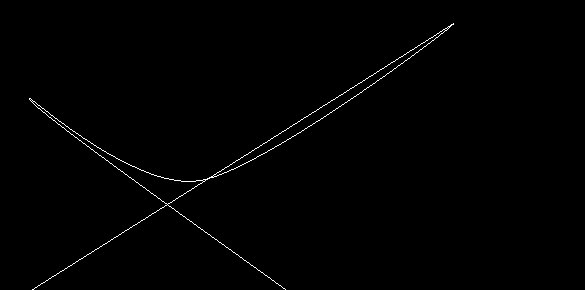

|  | | Graphics draw curve (For modes 2D, 3D, Console) | Show exampleHide example | | Draws curve to the graphics according to the given parameters. | | Draws white curve on graphics on chosen coordinates. | | |
|
|

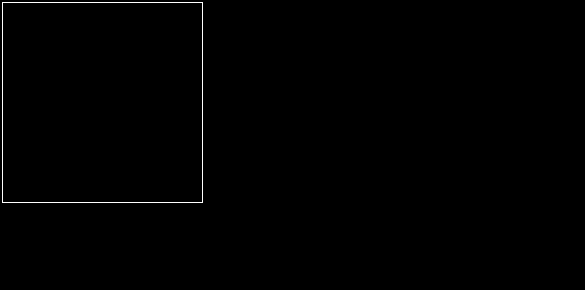

|  | | Graphics draw rectangle (For modes 2D, 3D, Console) | Show exampleHide example | | Draws rectangle to the graphics according to the given parameters. | | Draws white not filled rectangle on graphics on chosen coordinates. | | |
|
|

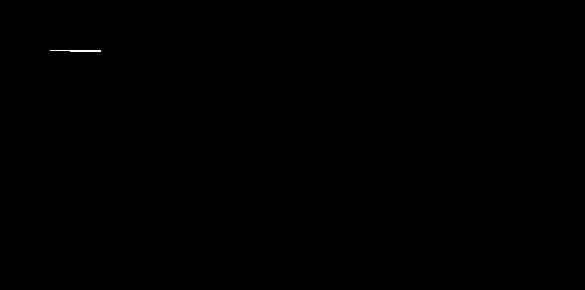

|  | | Graphics draw pie (For modes 2D, 3D, Console) | Show exampleHide example | | Draws pie to the graphics according to the given parameters. | | Draws white not filled circle sector on graphics according to chosen parametres. | | |
|
|

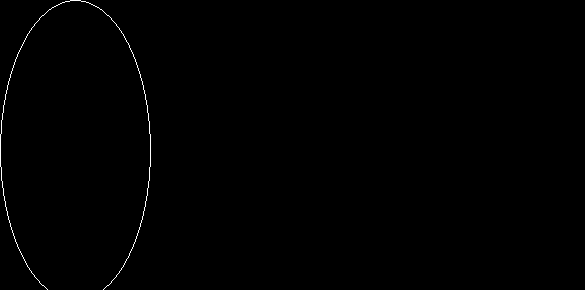

|  | | Graphics draw ellipse (For modes 2D, 3D, Console) | Show exampleHide example | | Draws ellipse to the graphics according to the given parameters. | | Draws white not filled ellipse on graphics on chosen coordinates. | | |
|
|

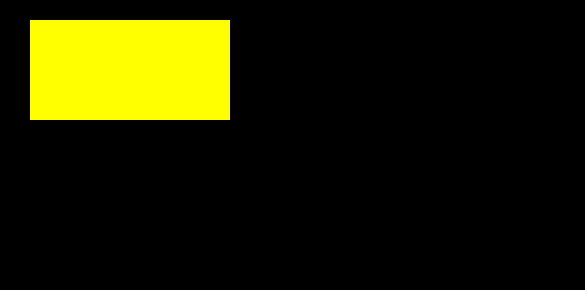

|  | | Graphics filled rectangle (For modes 2D, 3D, Console) | Show exampleHide example | | Draws filled rectangle to the graphics according to the given parameters. | | Draws yellow filled rectangle on graphics on chosen coordinates. | | |
|
|

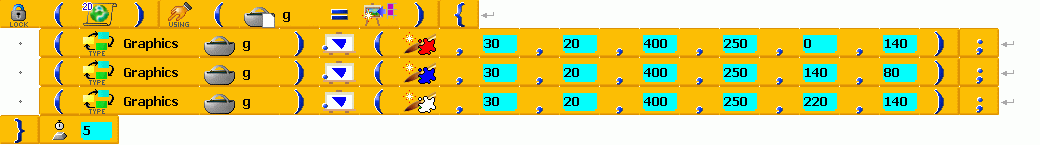

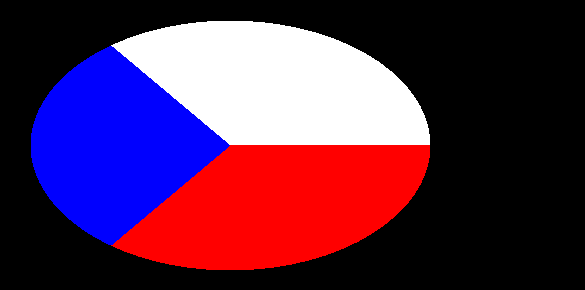

|  | | Graphics filled pie (For modes 2D, 3D, Console) | Show exampleHide example | | Draws filled pie to the graphics according to the given parameters. | | Draws red, blue and white filled sector of circle according to chosen values. Sectors creates Czech flag. | | |
|
|
|  | | Graphics filled ellipse (For modes 2D, 3D, Console) | Show exampleHide example | | Draws filled ellipse to the graphics according to the given parameters. | | Draws red filled ellipse on graphics on chosen coordinates. | | |
|
|

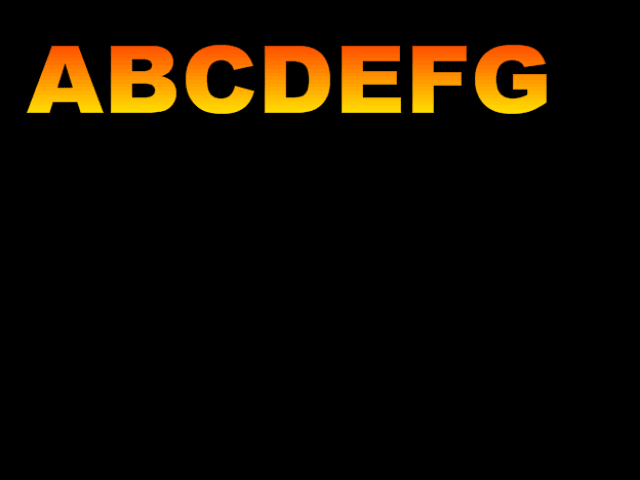

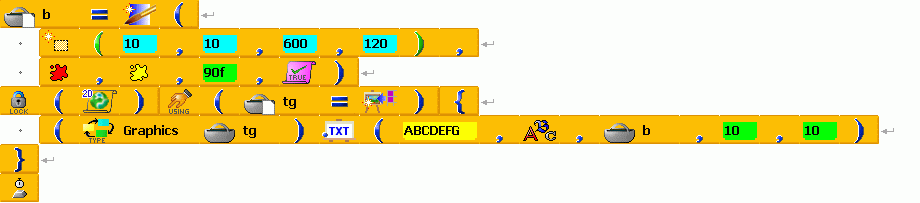

|  | | Graphics draw string (For modes 2D, 3D, Console) | Show examplesHide examples | | Draws string to the graphics according to the given parameters. | | Writes text "ABCDEFG" on chosen coordinates. The text is colored by created bitmap. | | |

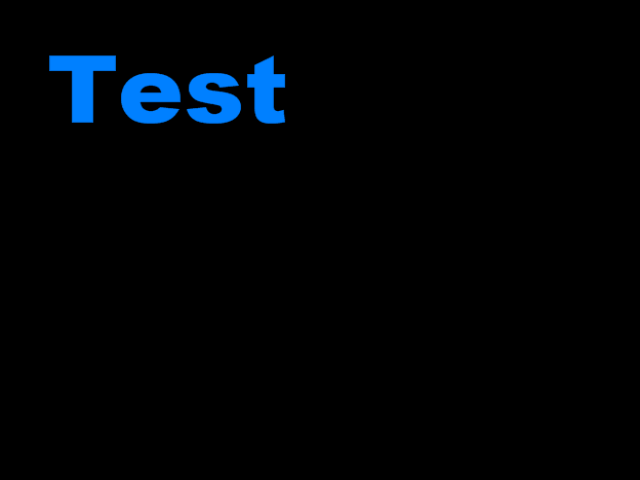

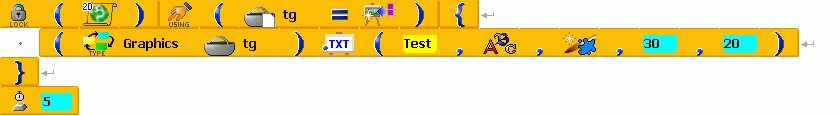

| Writes blue text "Test" on chosen coordinates. | | |
|
|
|  | | Graphics draw image (For modes 2D, 3D, Console) | Show exampleHide example | | Draws image to the graphics according to the given parameters. | | Draws image created from object 12 on graphics on chosen coordinates. | | |
|
|

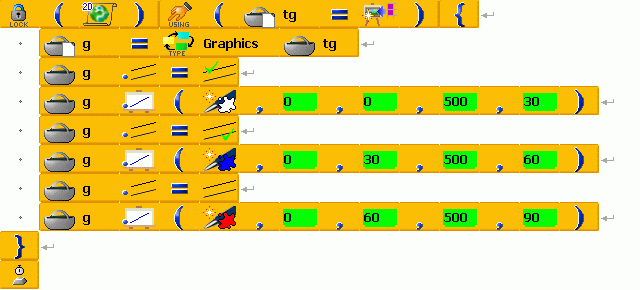

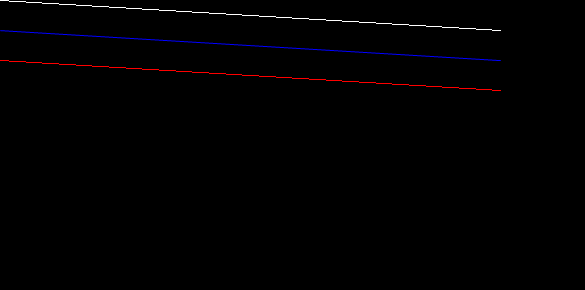

|  | | Graphics smoothing mode (For modes 2D, 3D, Console) | Show exampleHide example | | Get or sets mode of smoothing edges in graphics. | |
|
|  | | Remap color (For modes 2D, 3D, Console) | | | Creates new image from given image, with replaced colors. | |
|

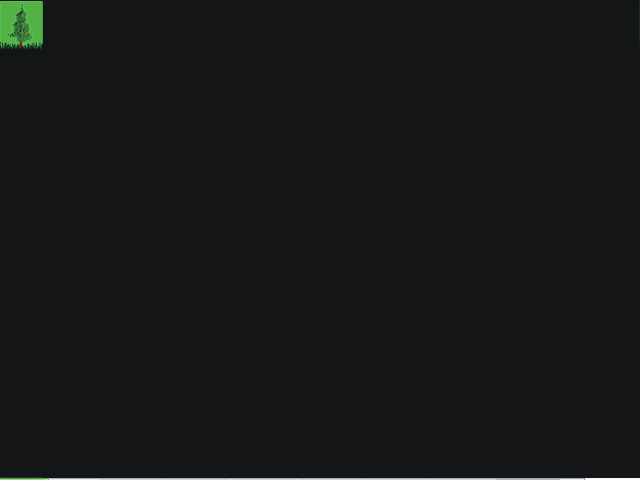

|  | | Change colors (For modes 2D, 3D, Console) | Show exampleHide example | | In image, replaces one color with different one. | |
|

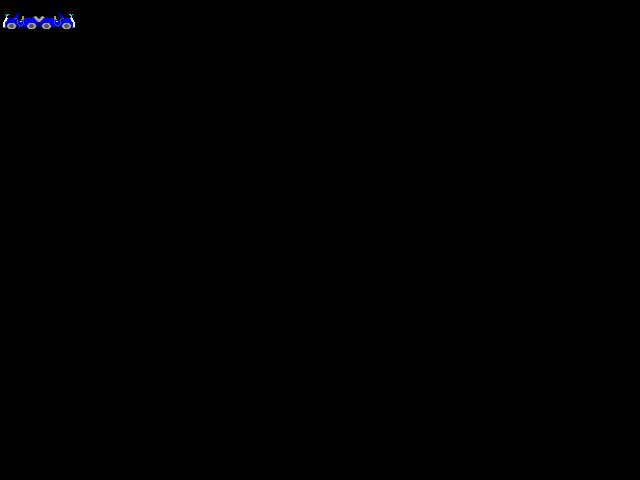

|  | | Bitmap horizontal flip (For modes 2D, 3D, Console) | Show exampleHide example | | Flips bitmap in the horizontal plane. | | Transfer object number 32 (a car) to bitmap and shows it on output. Then turn the bitmap horizontally and shows it again on output. | | |
|
|

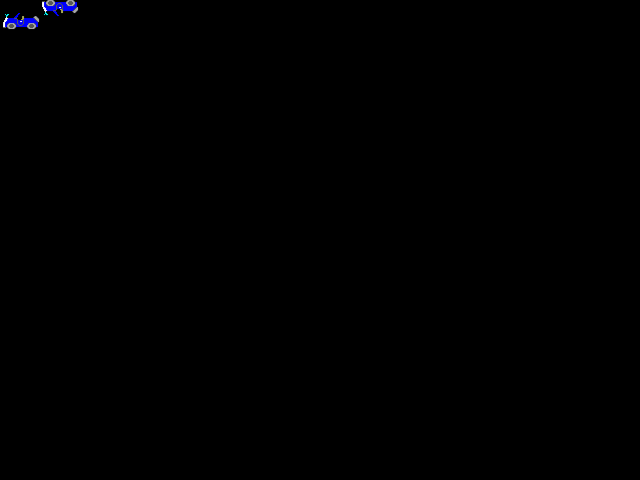

|  | | Bitmap vertical flip (For modes 2D, 3D, Console) | Show exampleHide example | | Flips bitmap in the vertical plane. | | Transfer object number 32 (a car) to bitmap and shows it on output. Then turns vertically the bitmap and shows it again on output. | | |
|
|
|  | | Bitmap make transparent (For modes 2D, 3D, Console) | Show exampleHide example | | Makes certain color in the bitmap transparent. | | After you choose a bitmap, sets white color as transparent color. | | |
|
|

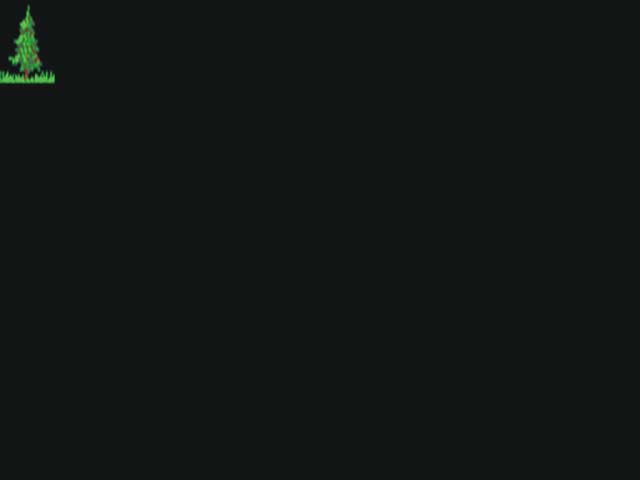

|  | | Resize bitmap (For modes 2D, 3D, Console) | Show exampleHide example | | Creates image that is resized copy of the given image. | |
|
|  | | Alpha color channel (For modes 2D, 3D, Console) | | | |
|
|  | | Red color channel (For modes 2D, 3D, Console) | | | |
|
|  | | Green color channel (For modes 2D, 3D, Console) | | | |
|
|  | | Blue color channel (For modes 2D, 3D, Console) | | | |
|
|  | | Color of object (For modes 2D, 3D, Console) | Show exampleHide example | | Make accessible object property, which defines its color. | | Writes to the output window Baltie's color. | | |
|
|
