|  | | Load Scene (For modes 2D, 3D) |   Show exampleHide example | | Reads Baltie's scene from file. Scene is items placement in Baltie's space. |
When you insert this command a dialog will opens. You can use it to specify .sgpsc file. The file name and the path are written behind the icon as an argument, which can be changed anytime.
If you don't specify any file name (in other words you leave the window pressing the Cancel),
the icon with the argument will be blank and a text cursor will blink on it, so you can add a file name manually.
When executing the command, B4 replaces the current scene with a new one.
|
|
|  | | Save Scene (For modes 2D, 3D) | Show examplesHide examples | | Writes Baltie's scene to file. Scene is items placement in Baltie's space. |
The scene is saved in the state at the moment of the command execution.
When you insert this command, a dialog opens. You can use it to specify .sgpsc file. The file name and the path are written behind the icon as an argument, which can be changed anytime.
If you don't specify any file name (in other words you leave the window pressing the Cancel),
the icon with the argument will be blank and a text cursor will blink on it, so you can add a file name manually.
B4 saves the state of the current scene to the file when executing the command.

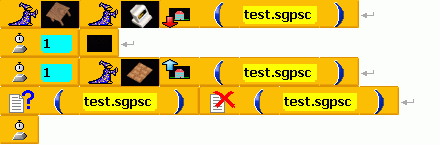

| Baltie conjures up a scene and saves it into a file. He clears the space, conjures the floor and loads the saved scene. The saved file is deleted afterwards. | | |
|
|

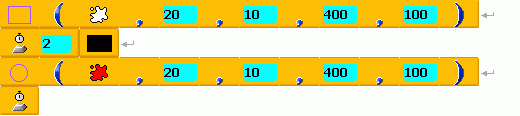

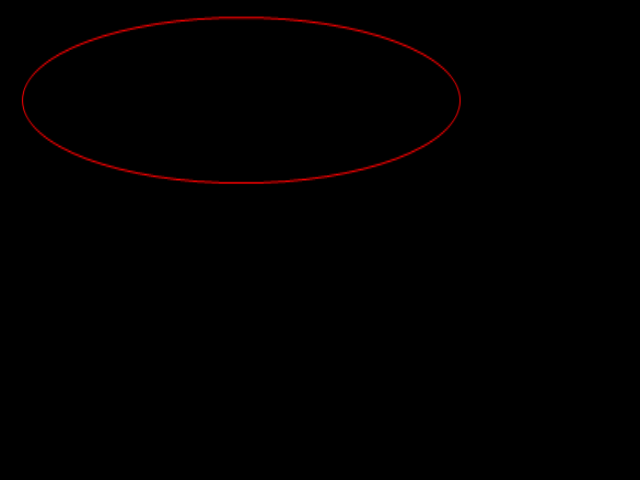

|  | | Clear Scene (For modes 2D, 3D) | Show exampleHide example | | Deletes all tiles and graphics in the scene. | | First draws white rectangle and waits 2 seconds. Then clean the screen and draw red ellipsis. | | |
|
|
